Add Column Headers

What it is for

Some tag columns are deferred (they are part of the tag definition but not always written when the table is first created). Add Column Headers lists missing deferred headers for the current tag on the sheet and lets you append them in Excel.

This is a local sheet edit. Sync is not required. Under an imported model the workbook must be classified and the active cell must be in a recognizable tag table. Files outside the model folder are also allowed; see Files outside the model.

How to use

  1. Open a classified scenario workbook and place the active cell in a tag table (Add Tag).
  2. Choose Add Column Headers from the VEDA ribbon or menu.

  3. In the dialog, review the missing headers offered for the current tag.

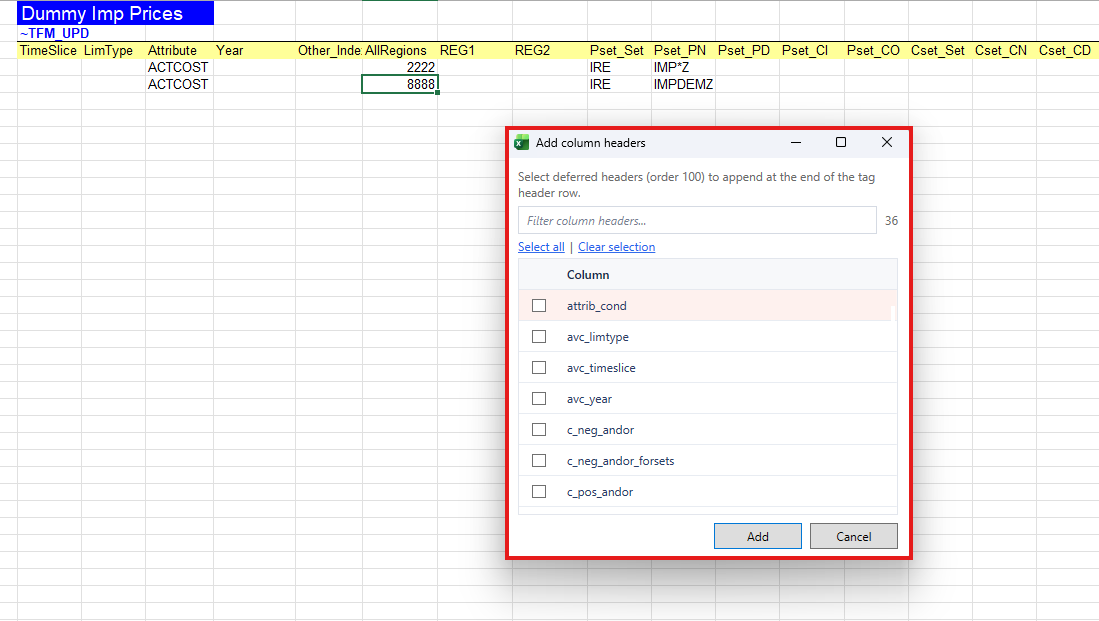

    Add Column Headers dialog

  4. Confirm to append them to the header row (and adjust the table as the dialog describes).

If the file is inside a model folder and not recognized, or you are not in a tag table, the command is blocked with a clear message.
